Economy Panel
Description
Economy panels are an advanced multi-purpose formwork system because:
- Stiffeners are built into the panel, therefore only two scaffold tube or channel walers are required for alignment
- Minimum clamps are required
- Rapid assembly with wedge sets
- Can easily be erected by unskilled labour
- Accommodates any tie system
- Durable steel face plate cannot be damaged by vibrators or penetrated by the reinforcing steel
- The automatic precision on assembly, results in 100% dimensional accuracy of the finished concrete
- Multi use – walls and decking
The economy panel’s main application is for vertical walling. It can also be used for horizontal beam soffits and for slabs where an “off the shutter” finish is required.

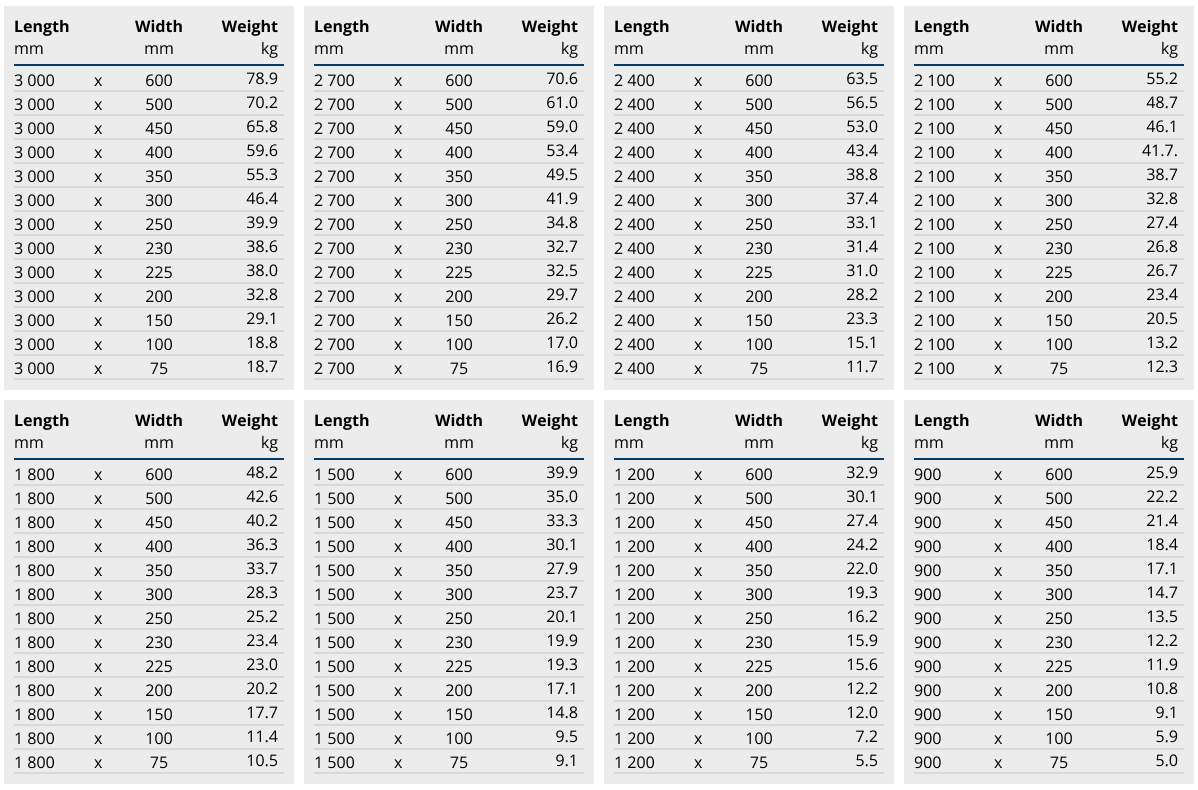

Specifications
Available in a variety of sizes:
- Length (mm): 3 000, 2 700, 2 400, 2 100, 1 800, 1 500, 1 200 & 900
- Width (mm): 600, 500, 450, 400, 350, 300, 250, 230, 225, 200, 150, 100 & 75
Hire Terms
- Hire is charged for time out and not for time used
- Minimum hire period is one day
- It is the customer’s responsibility to insure the equipment
- Lost or stolen equipment will be replaced at replacement value for the customer’s account.
- Refunds are done via EFT only – No cash refunds
